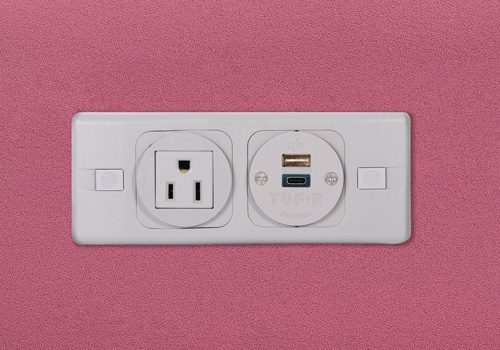

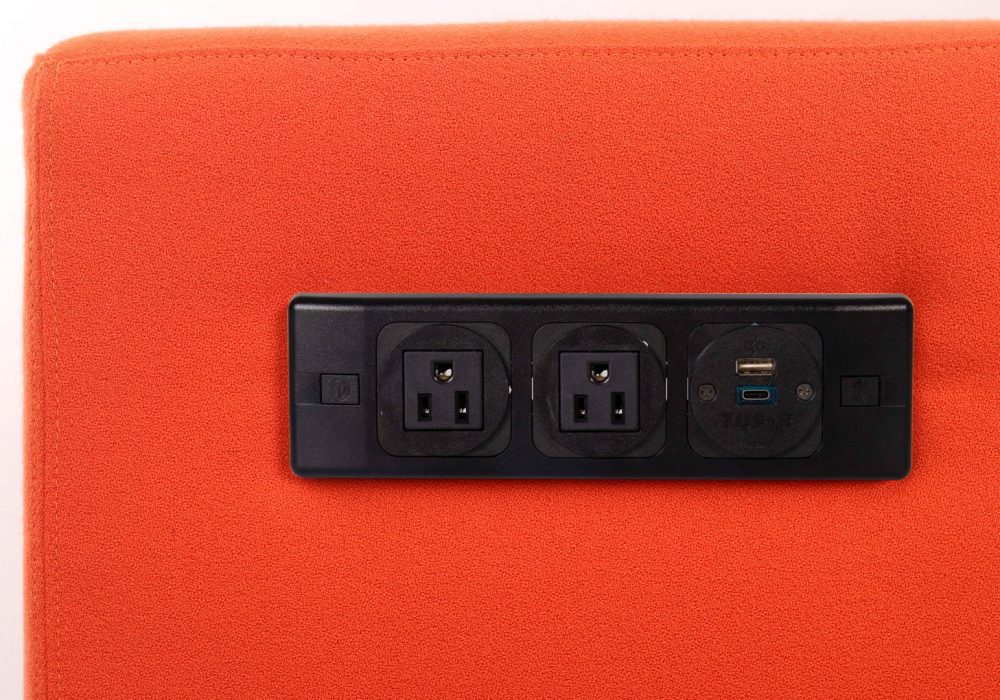

puma

in surface power unit

Features

• Choice of AC sockets, AV and data solutions

• Optional TUF 25W / TUF HP 60W USB Charging

• Base or side cord exit

Product Highlights

We test every pin on every connection in every socket

All units are manufactured using ISO9001 quality controlled components and practices and are 100% tested before dispatch.

  • cord options:  PUMA is wired as standard with a 32” 14/3 SJT cord to a male GST connector to be used with OE’s pluggable GST system.
    A starter cord is required for GST option: 72” or 108” 14/3 SJT cord with female GST connector, NEMA plug, and Integral OCP standard.

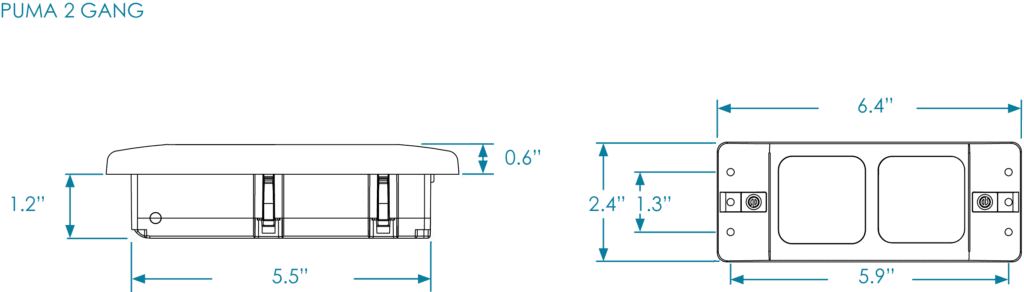

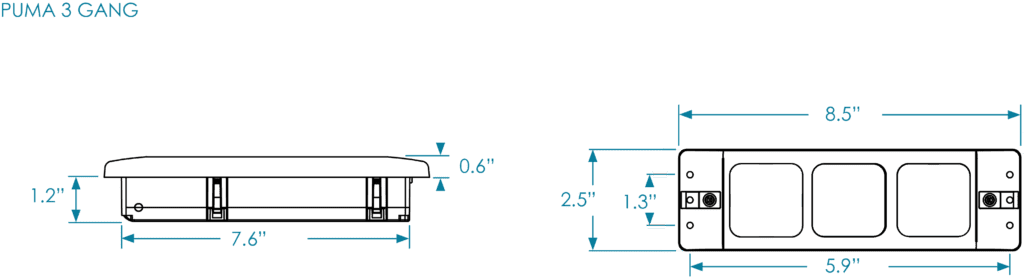

    Available by special order wired with a NEMA 5-15 cord and plug. Rotating cable grip allows the cord to exit the rear or side of the unit, allowing Puma to be mounted with a minimum depth of 1.18” (30mm).
  • materials – high strength fire retardant polycarbonate.

all your questions answered

Q.

What can be specified in PUMA’s apertures?

A.

Any combination of AC units, data/AV modules or a TUF module from the TUF range

Q.

What is the mounting depth?

A.

1.18″

Q.

Where is the cord exit?

A.

Base or side exit.

Cardiff

University

PUMA units were installed at Cardiff University.
