pixelARC


4 IN 1 DEVICE CHARGER

Features

• Choice of AC sockets, data and AV solutions

• Optional TUF 25W / TUF HP USB Charging

• 10W charging

Product Highlights

Product Description

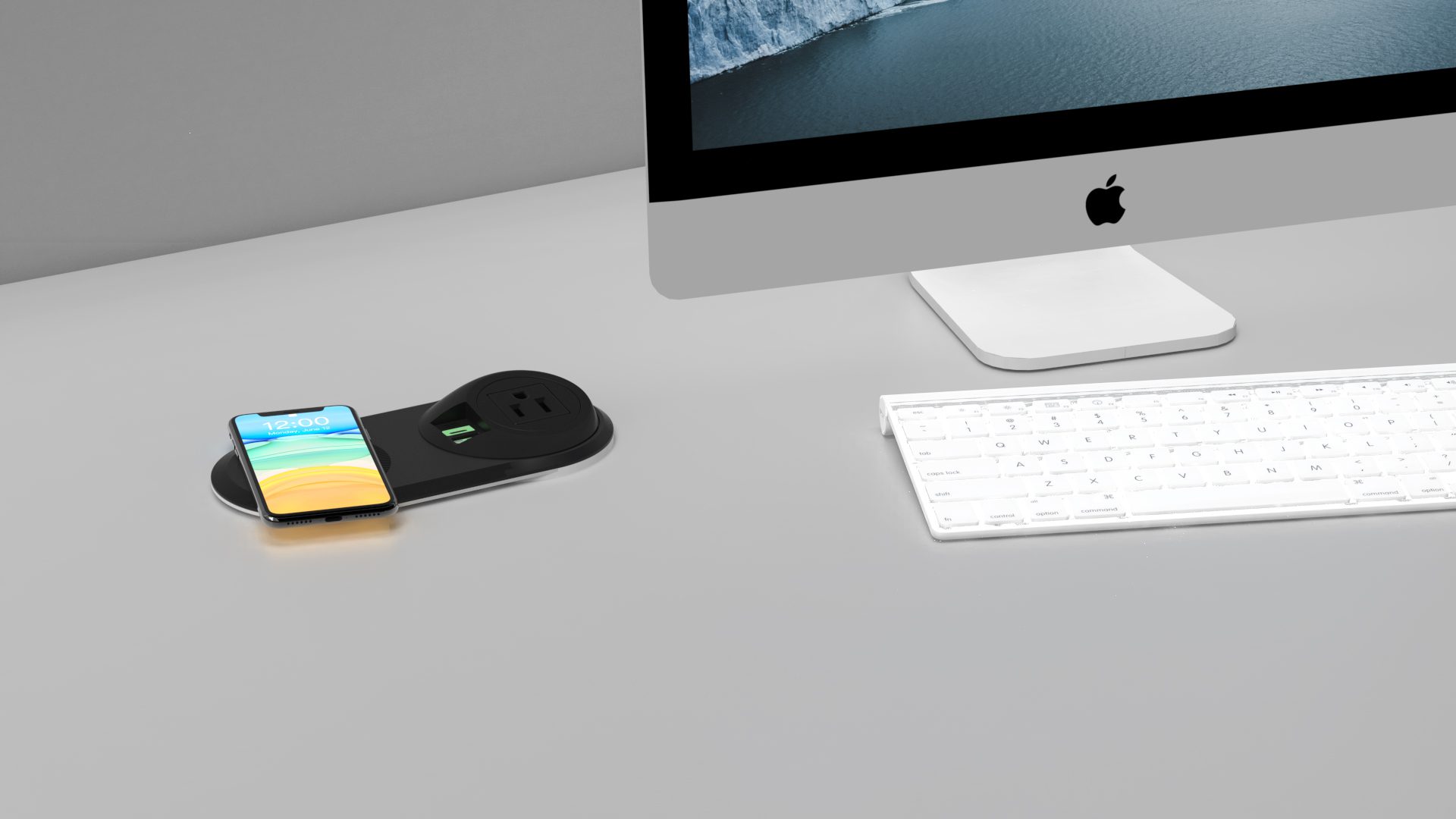

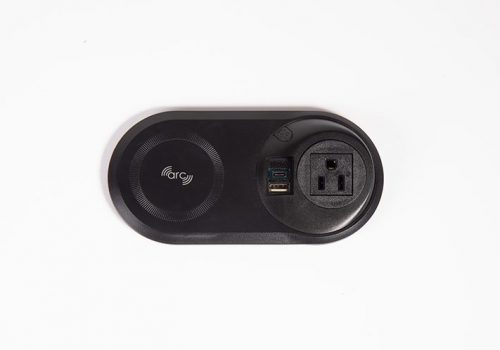

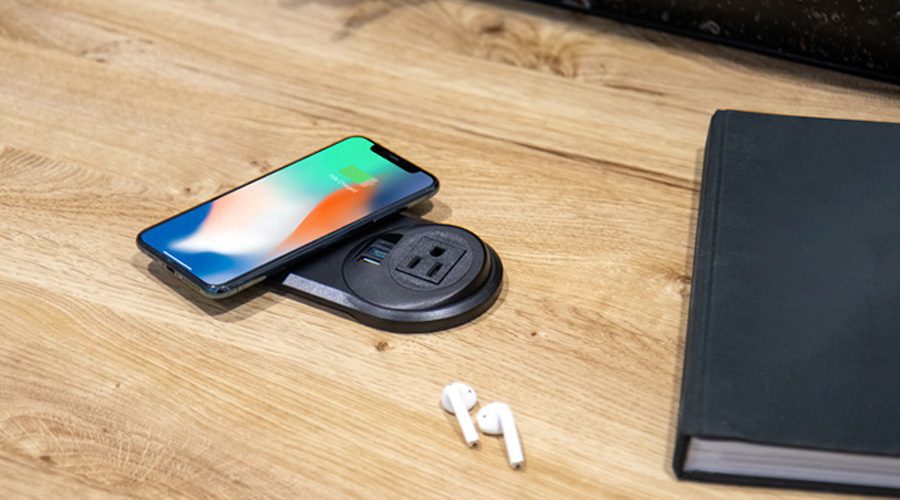

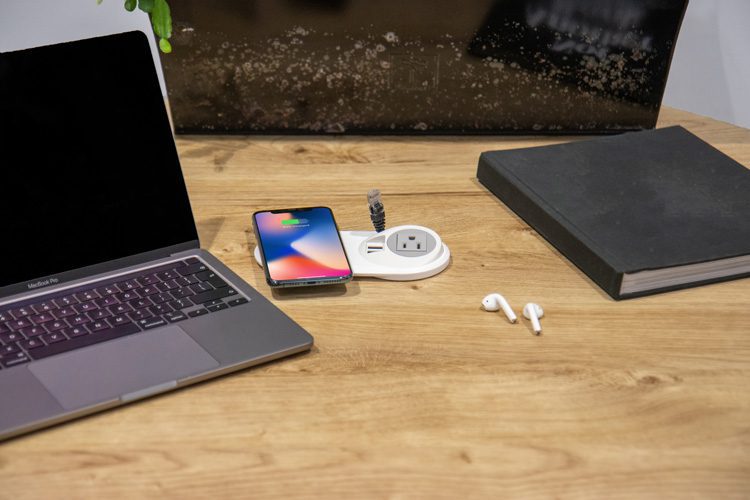

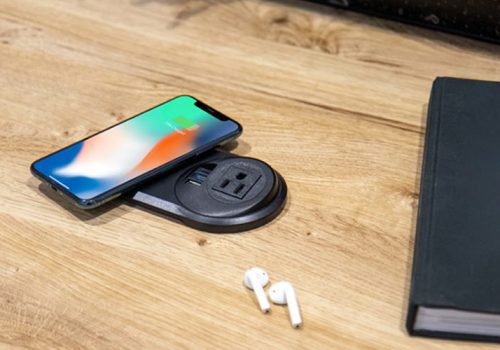

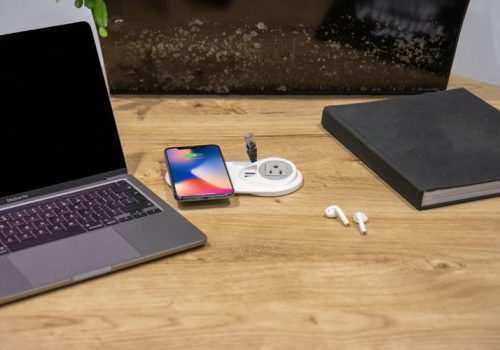

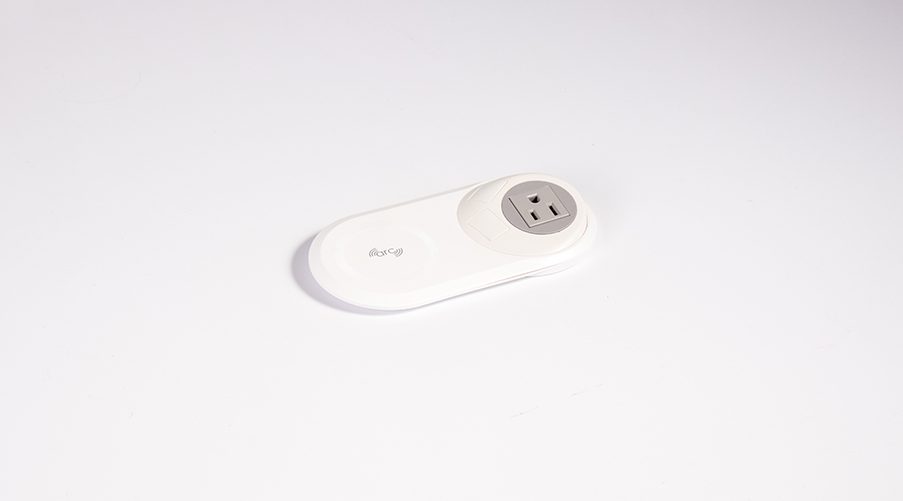

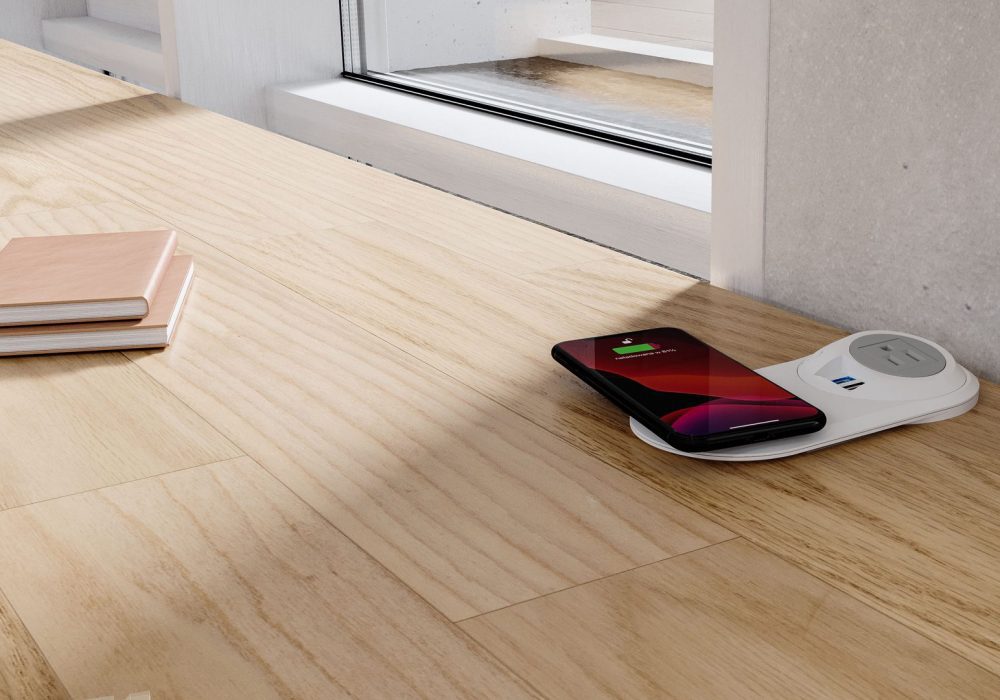

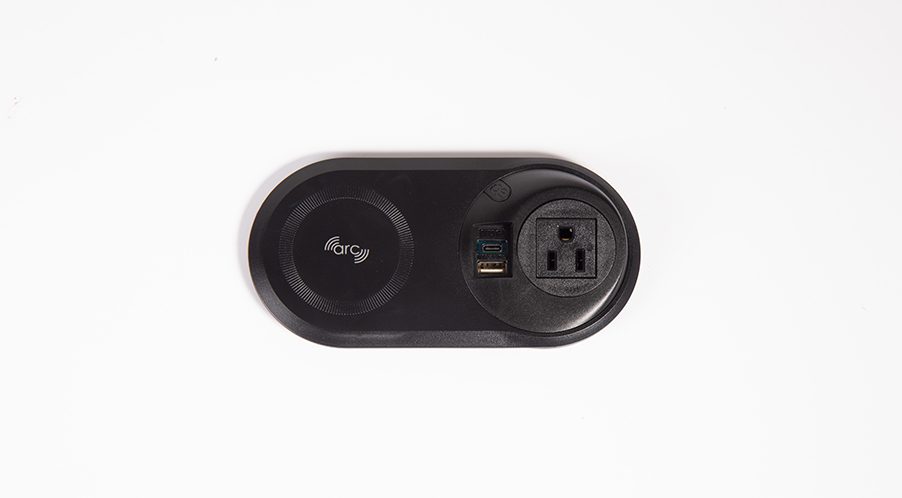

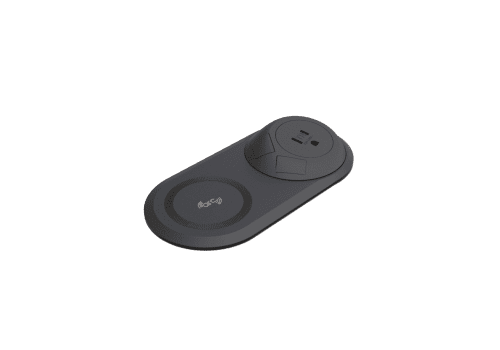

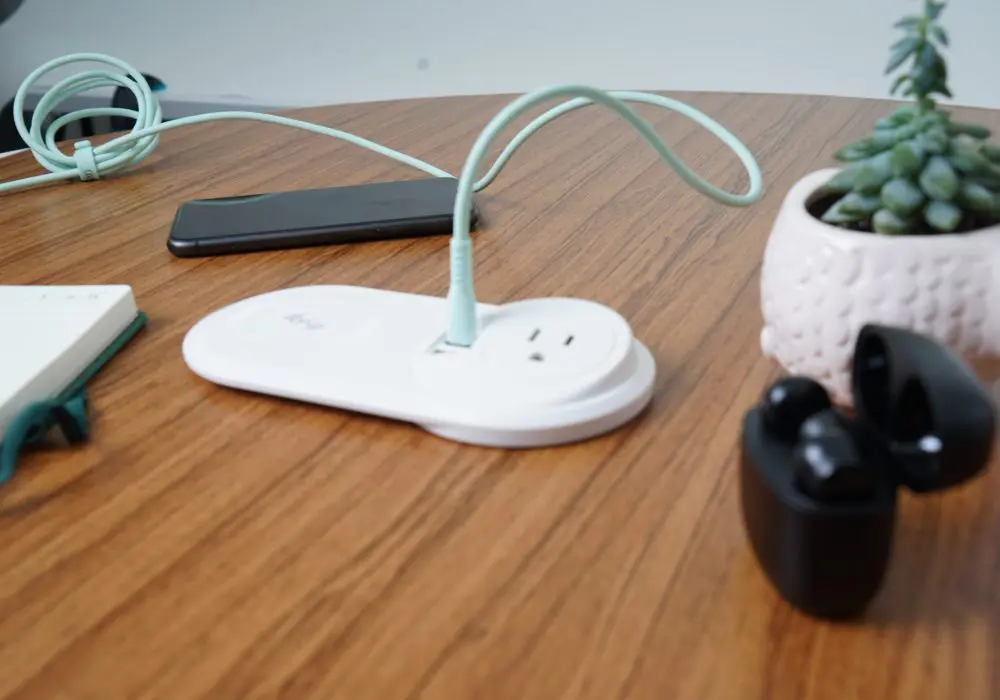

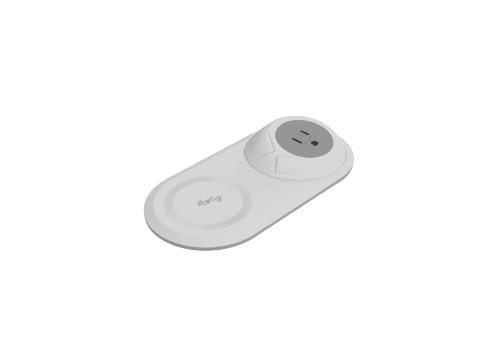

PIXELARC is your ultimate charging solution! The 4-in-1 charger combines wireless charging, USB, AC power and data/AV – enough power for all your devices.

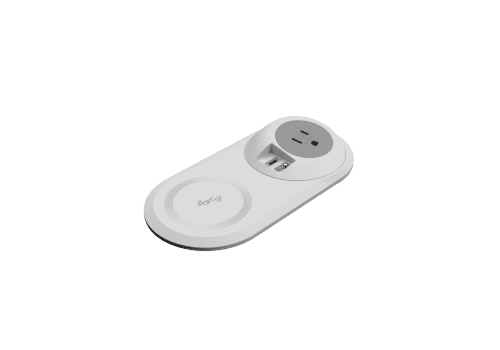

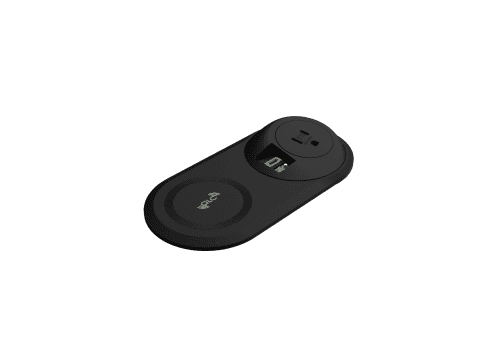

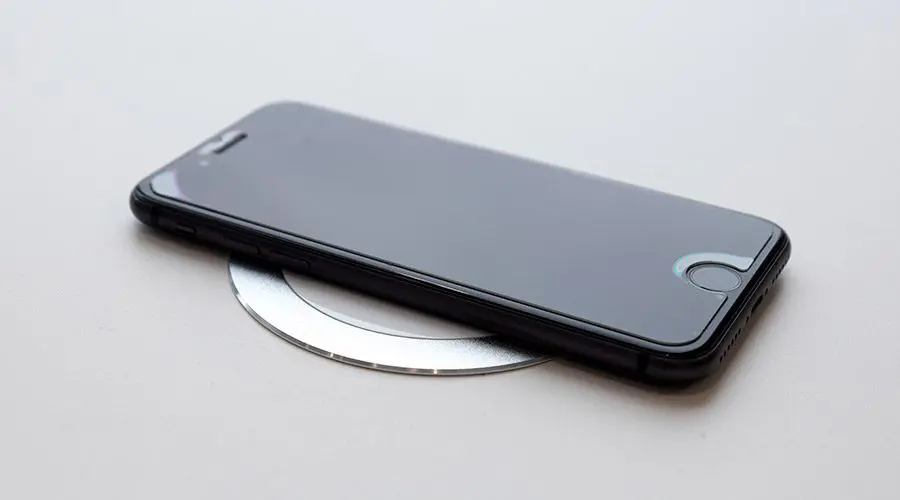

Its wireless charger is Qi compatible with 10W of power. PIXELARC pairs with either TUF 25W USB A+C or TUF-R HP – find out which is best for you by clicking here.

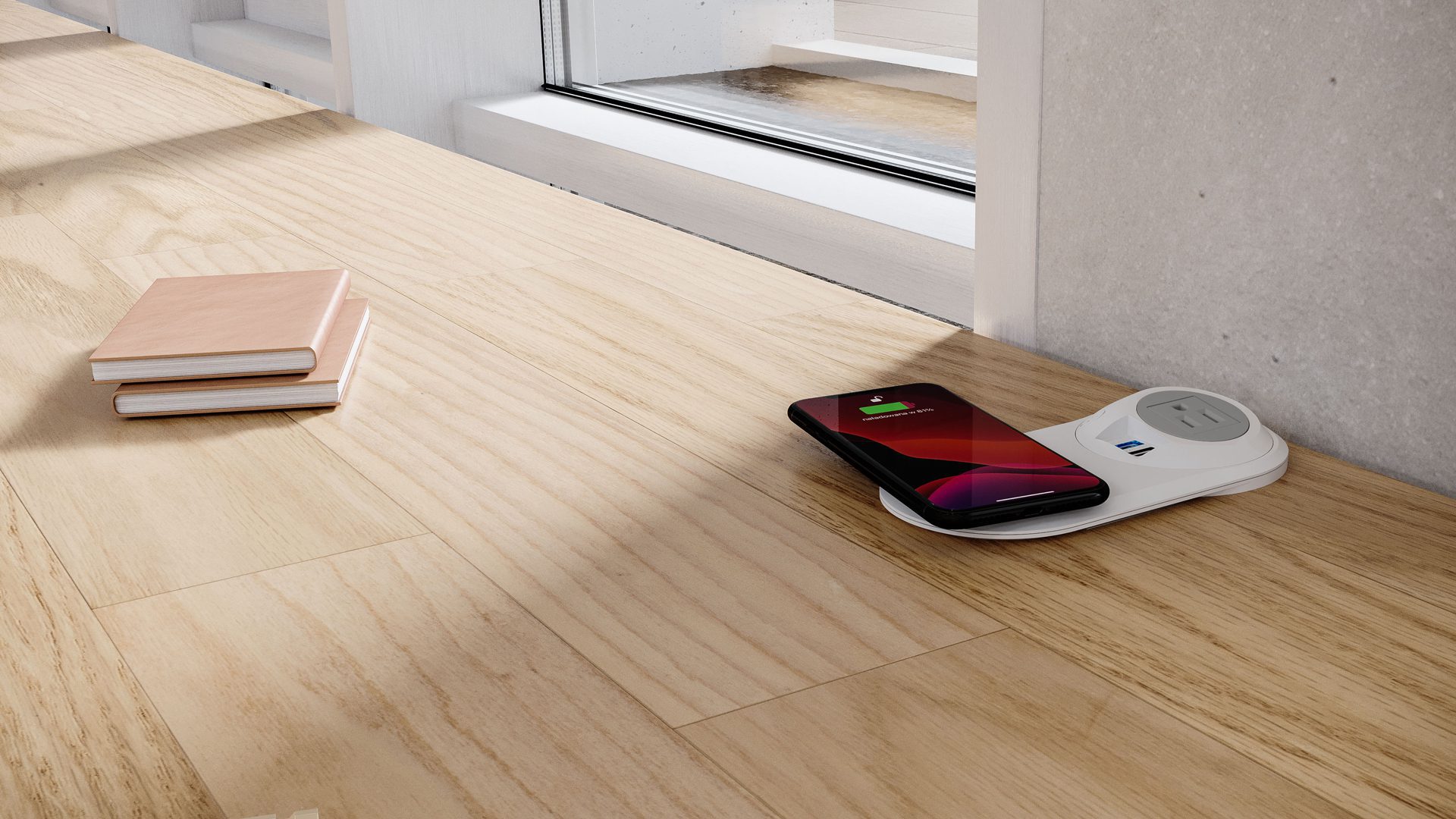

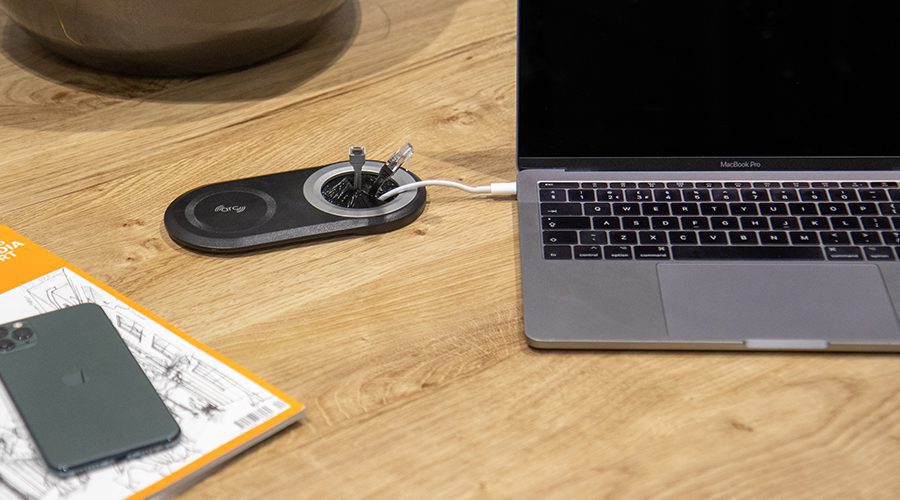

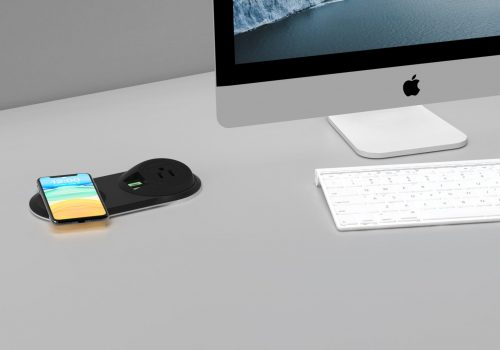

Whether it’s breakout areas, meeting rooms, learning spaces, hotels, or cafes, PixelARC hits the mark. Available in a wide range of international AC power sockets, with a simple 80mm drop-in mount, PixelARC has real universal appeal.

We test every pin on every connection in every socket

All units are manufactured using ISO9001 quality controlled components and practices and are 100% tested before dispatch.

PIXELARC Datasheet

PIXELARC fitting instructions

PIXELARC retrofit instructions

  • cord options: Wired standard with a 32” cord (14/3 SJT) to a male GST connector to be used with OE’s pluggable GST system and is available by special order wired with a NEMA 5-15 cord and plug. The GSTlead option requires a starter cord: 72” or 108” cord with female GST connector, NEMA plug, and Integral OCP standard. PIXELARC module connects via the supplied 6’ (2m) USB A cable and requires an external 9Vdc supply sold separately.

  • materials – body and fascias – polycarbonate

all your questions answered

Q.

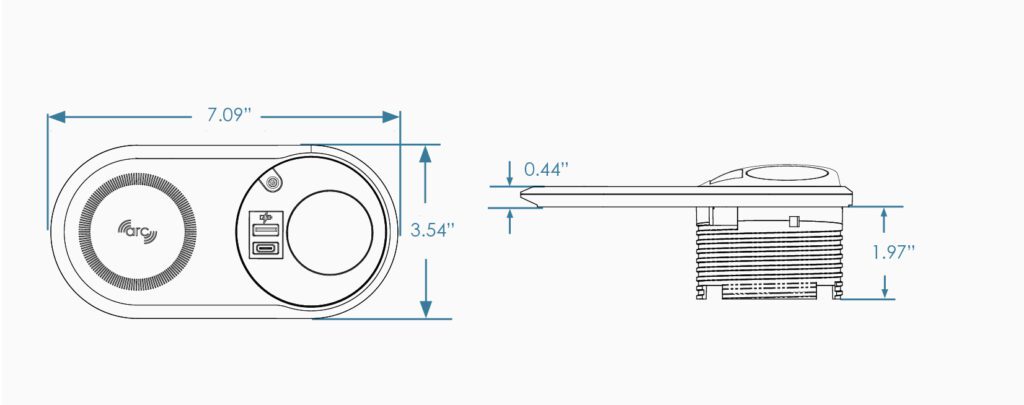

What sized opening does PIXELARC fit into?

A.

3.15″

Q.

What can be specified in PIXELARC’s aperture?

A.

Any of our AC units, data/AV modules or a TUF module from the TUF range.

Q.

What surface thickness is PIXELARC suited to?

A.

.04” to 1.57”
