QF05 TUF-R® CC
150W USB MODULE
Features
Product Highlights
Product Description

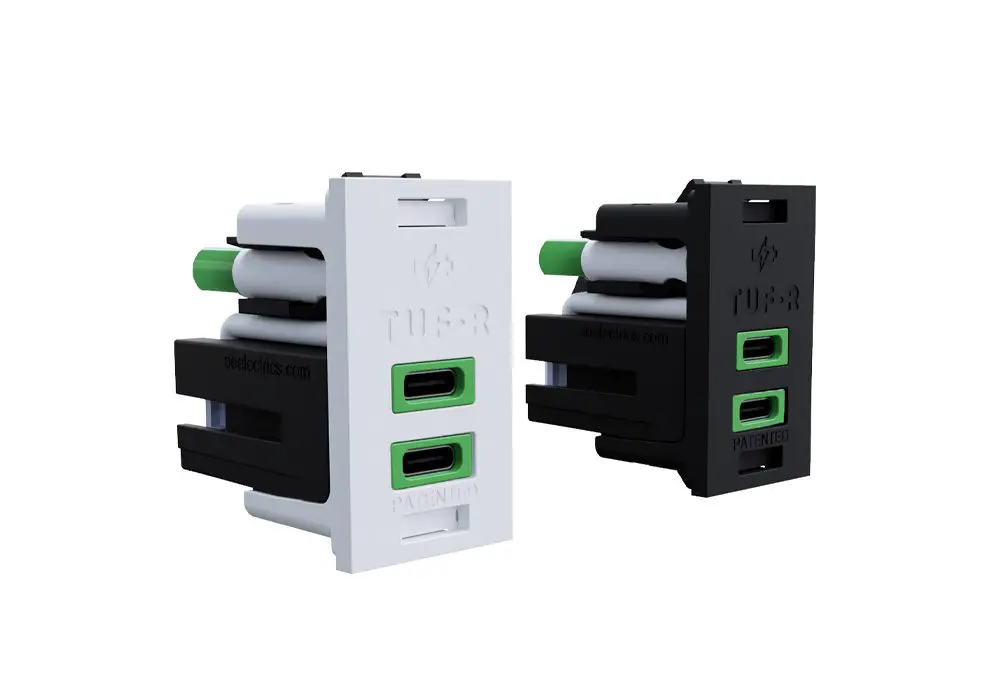

QF05 TUF-R® CC / 150W represents OE’s latest evolution in TUF USB charging. This cutting-edge, modular USB component features two advanced USB-C charging ports, enabling simultaneous high-power charging for up to two laptops or other USB-C powered devices.

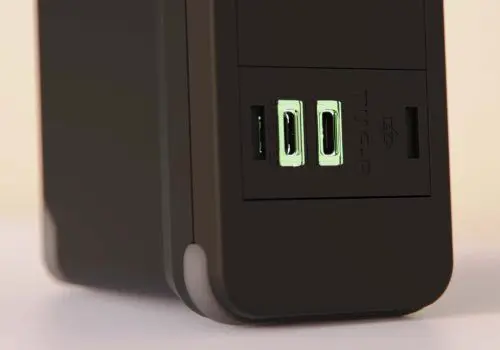

Designed for use with OE’s DC ecosystem ‘ANIMATE,’ the QF05 TUF-R® CC / 150W compact footprint allows for seamless integration into QIKPAC CARRY to create a commercial-grade portable power bank capable of charging two laptops, whenever and wherever you need them. Alternatively, integrate the USB module into furniture for a universal and efficient charging solution tailored to modern spaces.
We test every pin on every connection in every socket
All units are manufactured using ISO9001 quality controlled components and practices and are 100% tested before dispatch.
USB Charging Outlets:
2 x Type-C (reversible)
Rated Total Output:
Combined Output = 150W max. (based on 2 laptops drawing 75W each via two USB-C ports)
Single USB-C port output: 100W max. (based on one laptop charging via one USB-C port).
Construction:
High strength fire retardant polycarbonate
Colours:
Black or white
Materials:
- high strength fire retardant polycarbonate
Quality & Testing:
All QF05 TUF-R® CC / 150W modules are manufactured using ISO9001 quality controlled components and practices and are 100% tested before dispatch:
- Visual: Configuration and appearance
- USB charger: Output voltage and resistance
CE Marking:
QF05 TUF-R® CC / 150W modules are CE marked by OE Electrics as complying with:
- Electromagnetic Compatibility Directive 2014/30/
- EU Low Voltage Equipment Directive 2014/35/EU
- ROHS3 Directive EU 2015/863
Cable Options :
GST08 cable can be extracted from QF05 TUF-R® CC / 150W body for shallow depth fitting
Rear cable exit:
Side Cable Exit (Shallow mounting depth):
Dimensions:
all your questions answered
Q.
What is the difference between QF05 TUF HP and QF05 TUF CC 150W?
A.
QF05 TUF-R®/HP features 1 x USB-C port. and 1 x USB-A port to charge legacy devices.
QF05 TUF-R® CC / 150W features 2 x high power USB-C ports capable of charging up to 2 laptops simultaneously.
Q.
Can I use QF05 TUF-R® CC /150W with QF30 PSU?
A.
The module has been designed for use with our ANIMATE battery system, specifically QIKPAC BATTERY & QIKPAC CARRY to enable high power capabilities via both USB-C ports.
While QF30 PSU can be used, this will only enable reduced power mode. See technical details for output.
Q.
What is reduced power mode?
A.
Reduced Power Mode is activated when input voltage is below 23V or when temperature is nearing circuit limits.
