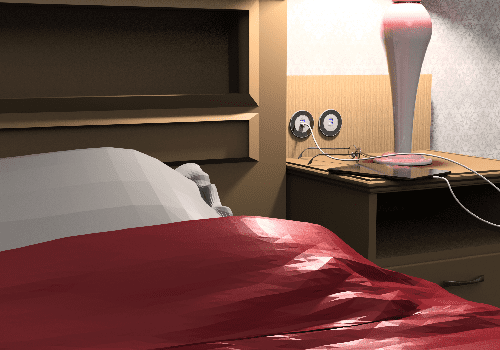

500x350 pip-bedroom-scene
PIP-OE-Electrics-TUF-A+C-SD

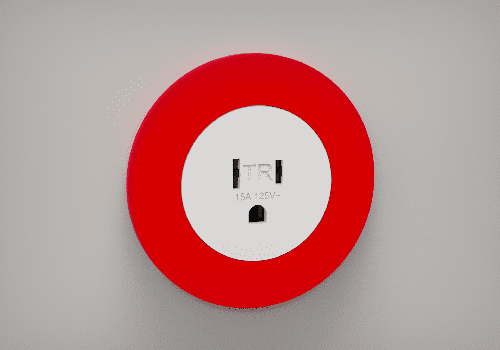

500x350 PIP_NEMA_RED.513

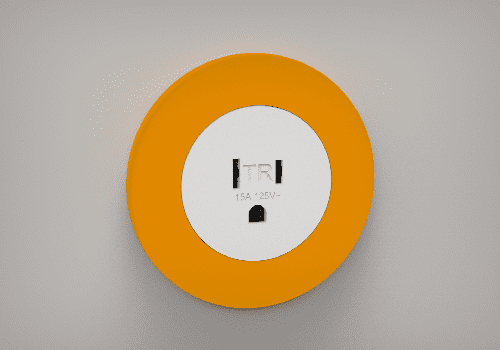

500x350 PIP_NEMA_LIGHT-ORANGE.510

pip


IN SURFACE POWER UNIT

Features

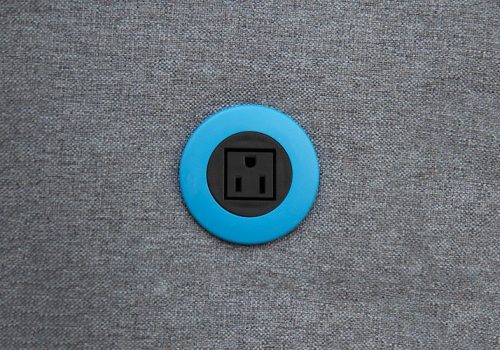

• Choice of AC sockets

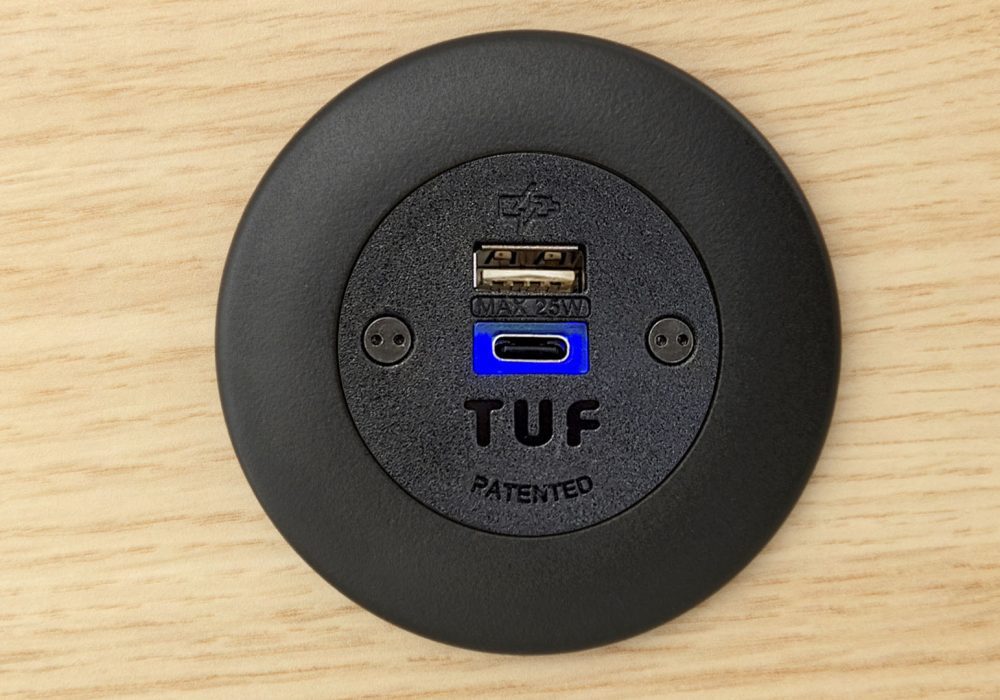

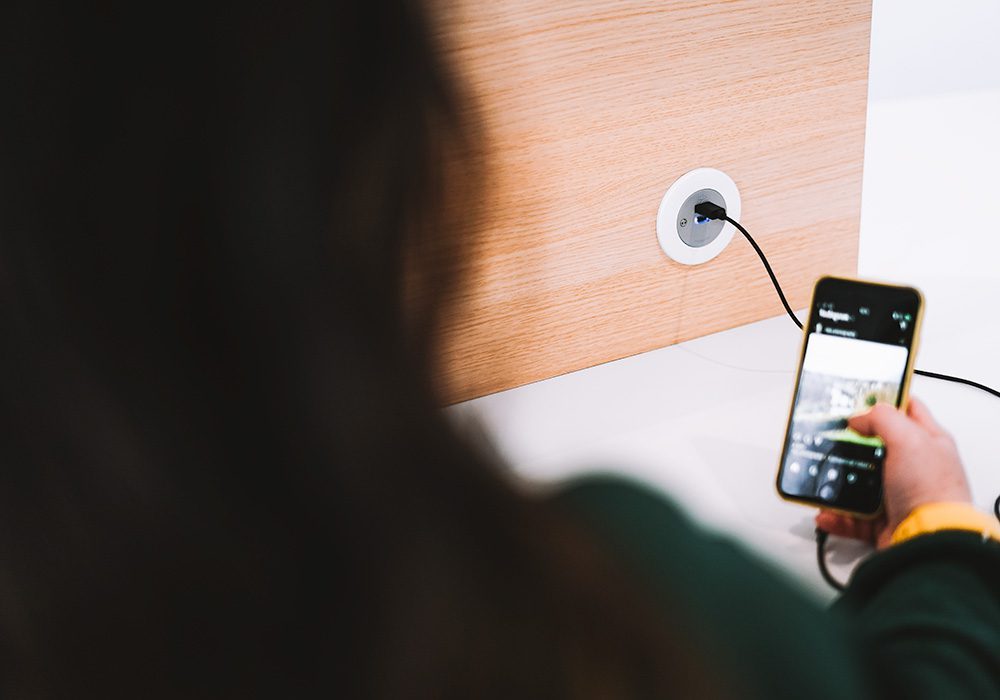

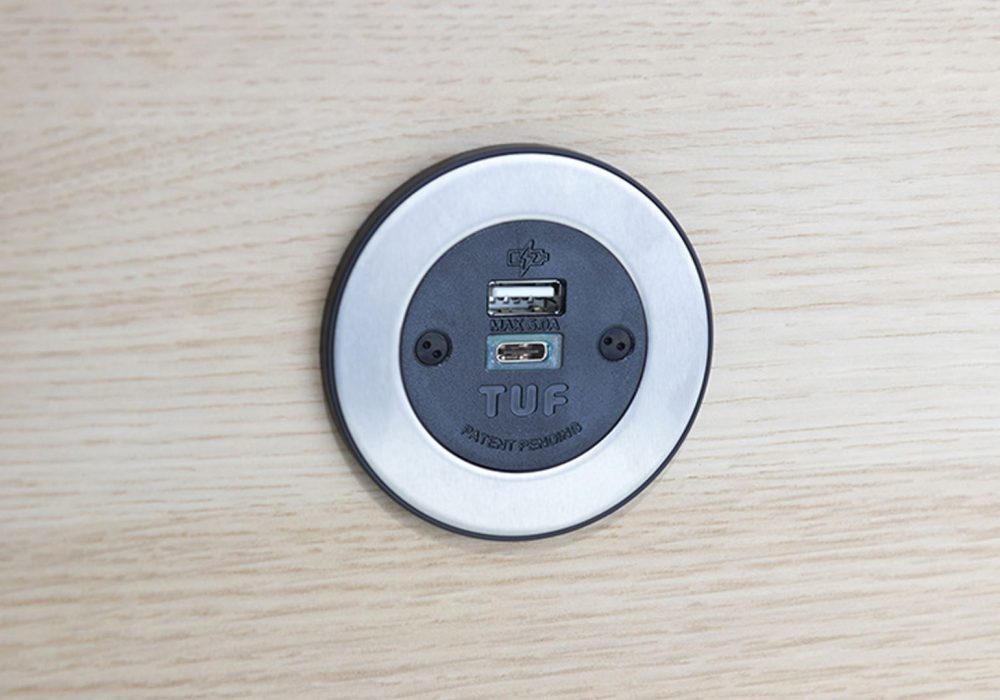

Add TUF-R HP or 25W USB modules with TUF | PROTECT

• Rear or side cord exit

Product Highlights

We test every pin on every connection in every socket

All units are manufactured using ISO9001 quality controlled components and practices and are 100% tested before dispatch.

  • cord options:  PIP is wired as standard with a 32” 14/3 SJT cord to a male GST connector to be used with OE’s pluggable GST system. Available by special order wired with a NEMA 5-15 cord and plug. A starter cord is required for GST option: 72” or 108” 14/3 SJT cord with female GST connector, NEMA plug, and Integral OCP standard.
  • materials – body – nylon; back bezel – ABS with optional metal inlay; socket fascia – Polycarbonate, TUF-R available in stainless-steel

all your questions answered

Q.

What can be specified in PIP’s aperture?

A.

A single AC unit, or a TUF module from the TUF range.

Q.

What size openings does PIP fit into?

A.

2.34” openings in furniture.

Q.

What thickness surfaces will PIP mount into?

A.

Most surfaces from 0.03” to 1.18”
