TUF-R® A+C

25W

OE’s TUF-R® PD (25W) is USB fast charging module incorporating the latest Power Delivery technology and an industry first reversible USB A port.

Patented Replaceable USB Cartridge

LED Power Delivery Indication

Independently tested to 10,000 insertions

Internal overload protection

Reversible USB type-A and type-C ports!

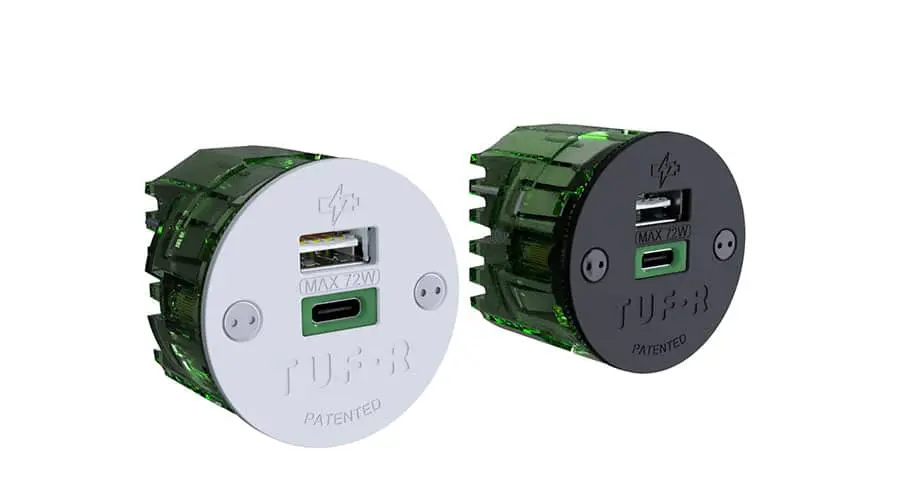

Replaceable 42mm round module

what is TUF 25W?

TUF-R® A+C (25W) is our standard USB module, available across OE’s range of power units, incorporating Power Delivery technology to charge mobile phones and tablets at optimum speeds. For a battery boost, a quick 10-minute charge is all that is needed to add around 20% for the latest mobile devices.

Supply Voltages

The TUF-R® A+C USB charger offers different supply voltages depending on the device being charged.

When a device is plugged into either the USB-A or USB-C socket a digital ‘handshake’ takes place allowing the  TUF to charge the device at the optimum level.

TUF’s Intelligent Device Recognition (IDR) ensures your device is charged at the optimal level in the shortest time.

Blue LED – standard Fast charging upto 5V
Green LED – Power Delivery 9V – 20V

Power Delivery Indicator

In standard Fast Charging mode the Type C charger remains blue, but if your device accepts Power Delivery the LED will turn green as soon as your device pulls 9-20V providing the most optimal charge.

Fuss-Free Replaceability

OE’s TUF-R 42mm USB charging modules can quickly be replaced, in-situ, without the need for an electrician or even turning off the power; or, to keep pace with technology, it can be exchanged for an upgraded TUF solution.

Get it right

every time

Our new USB Type A not only offers advanced charging, but can accept the USB inserted either way – getting it right – every time. The reversibility of the Type A socket makes it far less likely to be damaged while in use and has been independently tested to over 10,000 insertions.

FAQs

OE’s TUF-R® is a patented USB fast charging module offering USB types A and C in a compact 42mm round fascia. TUF-R is the OE Electrics brand name for its Twin USB Fast – Replaceable charging module able to be fitted into the majority of OE power modules.

USB Power Delivery (PD for short) is a universal single charging standard which is used for most USB devices. Devices will no longer need separate adapters as USB PD will be able to charge the majority.

Yes!

With OE’s unique replacement tool, TUF USB modules can be replaced quickly and easily on-site, without the need for an electrician or turning off the power!

Watch the video here

TUF is designed for device charging only. Data transfer is not possible as TUF has no external data connections or the ability to store malicious code.
