Ply – Coming Soon

Download Datasheet

Eco-Friendly materials
Patented TUF-R A+C 25W USB charging
Choice of AC sockets & data solutions
Fenix® Grigio Bromo gray or Alpine white
Space-saving vertical & horizontal design
Braided power cord option
Desk-edge or through-desk mounting (through desk mounting suitable for narrow openings)

Bringing a European flair to clamp-on office power, PLY uses sustainable sourced birch ply to house an attractive desktop power module. A laminate face allows a customized finish – Alpine White or Fenix® Grigio Bromo (gray) matte laminate as standard – with customers’ own laminate specification available on request.

PLY is available in both vertical 2-gang and horizontal 3-gang versions. Choose any combination AC power sockets, patented TUF-R A+C 25W USB fast charger, data, and A/V sockets.

The included clamp bracket enables desk edge or through-desk mounting. The powder-coated, steel clamp has a two-piece design to allow installation through narrow openings when screens are tight to the desk edge.

Technical Info

Configuration:
Configure PLY’s 42mm socket apertures with any combination of:
– AC power socket, or
– TUF-R A+C 25W USB charger, or
– Data/AV (Horizontal model only)

Construction:
Laminate faced birch ply body
Polycarbonate socket inserts and fascias
Powder coated steel rear plate and bracket

Color:
Fenix® Grigio Bromo (gray) or Alpine white
Black socket inserts and fascias
Black RAL9005 rear plate and bracket
Black cord
Optional braided cord

Power and cord:
PLY is wired as standard with a 32” 14/3 SJT cord to a male GST connector to be used with OE’s pluggable GST system.
Available by special order wired with a NEMA 5-15 cord and plug.
A starter cord is required for GST option: 72” or 108” 14/3 SJT cord with female GST connector, NEMA plug, and Integral OCP standard.

Data:
Data/AV with 1.8m / 3m cords can be integrated into PLY on request. Alternatively, can be supplied with keystone data aperture for site installation of data.

Mounting:
PLY is supplied as standard with an integrated steel clamp bracket for through desk or desk edge mounting in desk tops 0.51” – 1.97” thick. Oversize M8 knurled bolts allow tightening by hand, without tool, and spread clamping force to prevent damage to desk underside.

Certifications:
International certifications available on request.

Quality and Testing:
All PLY units are manufactured using ISO9001 quality controlled components and practices and are 100% inspected before shipment.

• Visual: Configuration and appearance

• Power sockets: Continuity, polarity, insulation & grounding

• TUF-R A+C 25W USB charger: Fully function tested, as well as 4 hour “full-load” soak tested”

• Data & AV: 100% continuity tested; all orders are batch tested for performance compliance

“we test every pin in every socket in every module”

Dimensions:

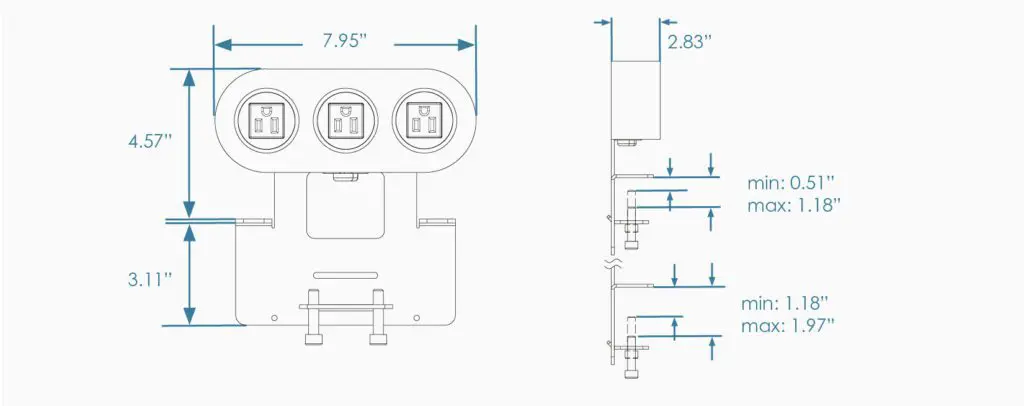

Horizontal

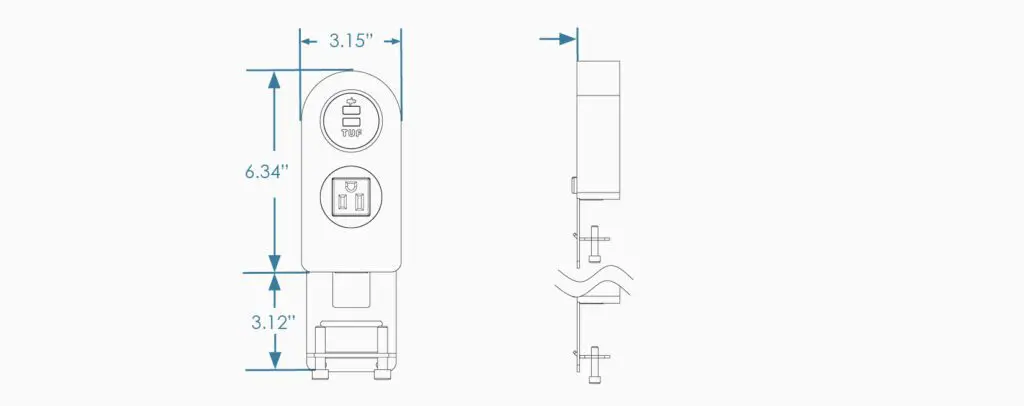

Vertical
